Special offer - Tornos Select

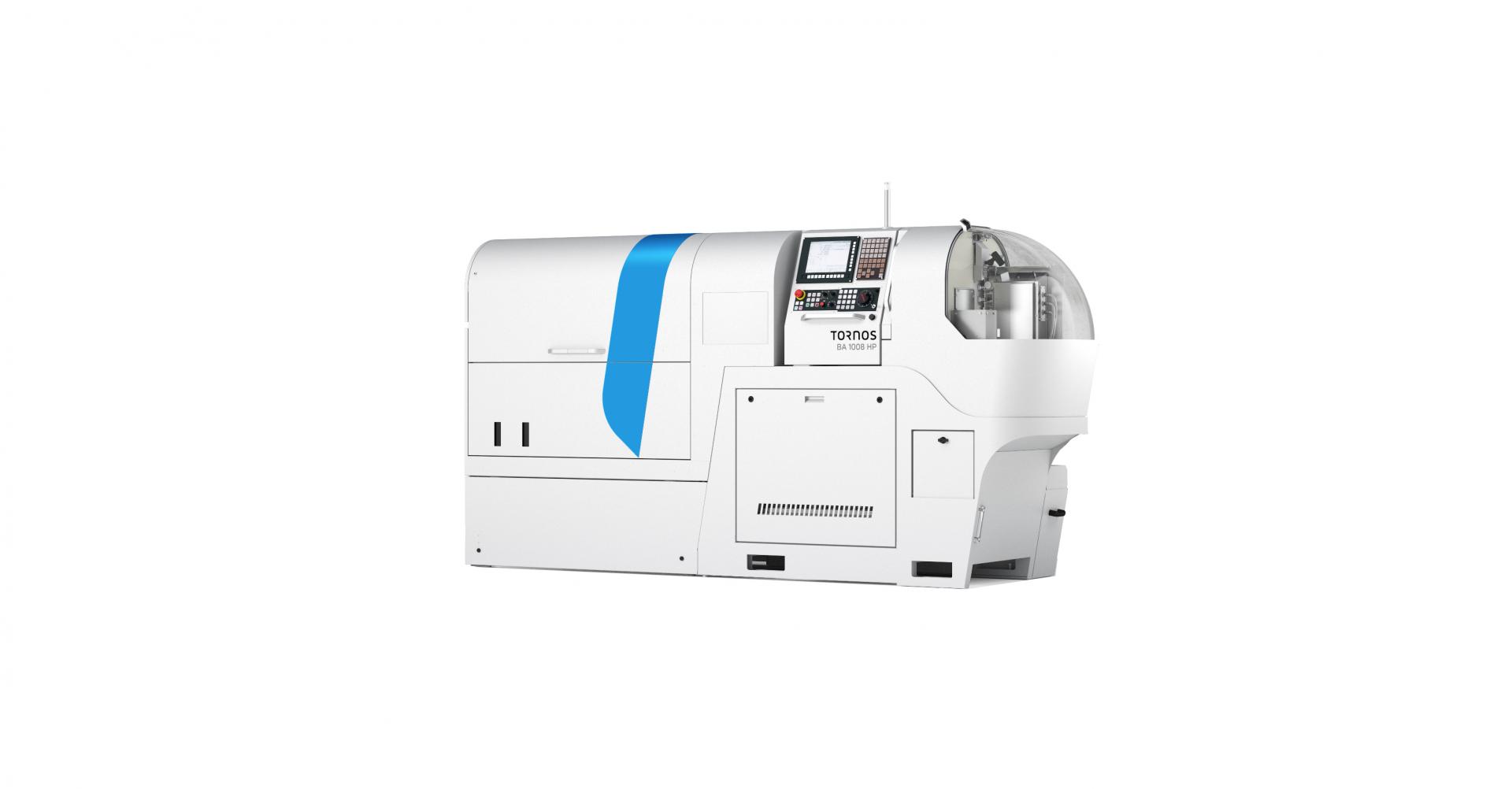

BA 1008 HP Demo #i52066
| Serial | #i52066 | |
|---|---|---|
| Hours | 5000 | |
| Year | 2017 | |
| Discount | 10% discount | |
| Warranty | 6 months | |
| Delivery | One month from order and downpayment for additional equipment delivery time will be confirmed accordingly with the availability. |
Main equipment included:
- BA 1008
| BA 1008: | ||
|---|---|---|
|
Number of axes |
|
6 linear + 1 axe C |
|
U/V/W travel |
mm | 26/160/200 |
| Max. bar capacity (F22 nose collet) | 16 | |
|
Maximum number of tools |
10 | |
|
Front spindles |
rpm | 4 x 12,000 spindles (mechanical) 28,000 (HF) or 80,000 (HF) |
|
Lateral spindles |
rpm | 3 x 12,000 spindles (mechanical) 28,000 (HF) or 80,000 (HF) |
| Secondary operation | rpm | 2 x 28,000 (HF) or 80,000 (HF) spindles |
| Sectioning tool | 1 tool (Ø 80mm) | |
| Control type | Fanuc 0iMD/0iMF | |
| Dimensions L x W x H | mm | 2400 x 650 x 1600 |
| Weight | kg | 950 |
Tornos Select is valid only for Europe and Switzerland. Visitors from other regions should contact us directly about other special promotions.
INTERESTED? GET IN TOUCH WITH US TODAY!
This offer is subject to conditions and availability. Please contact us for more details. All descriptions and specifications on this page should be considered as nonbinding and may include optional equipment that is not part of the standard configuration.
