Next Challenge, please !

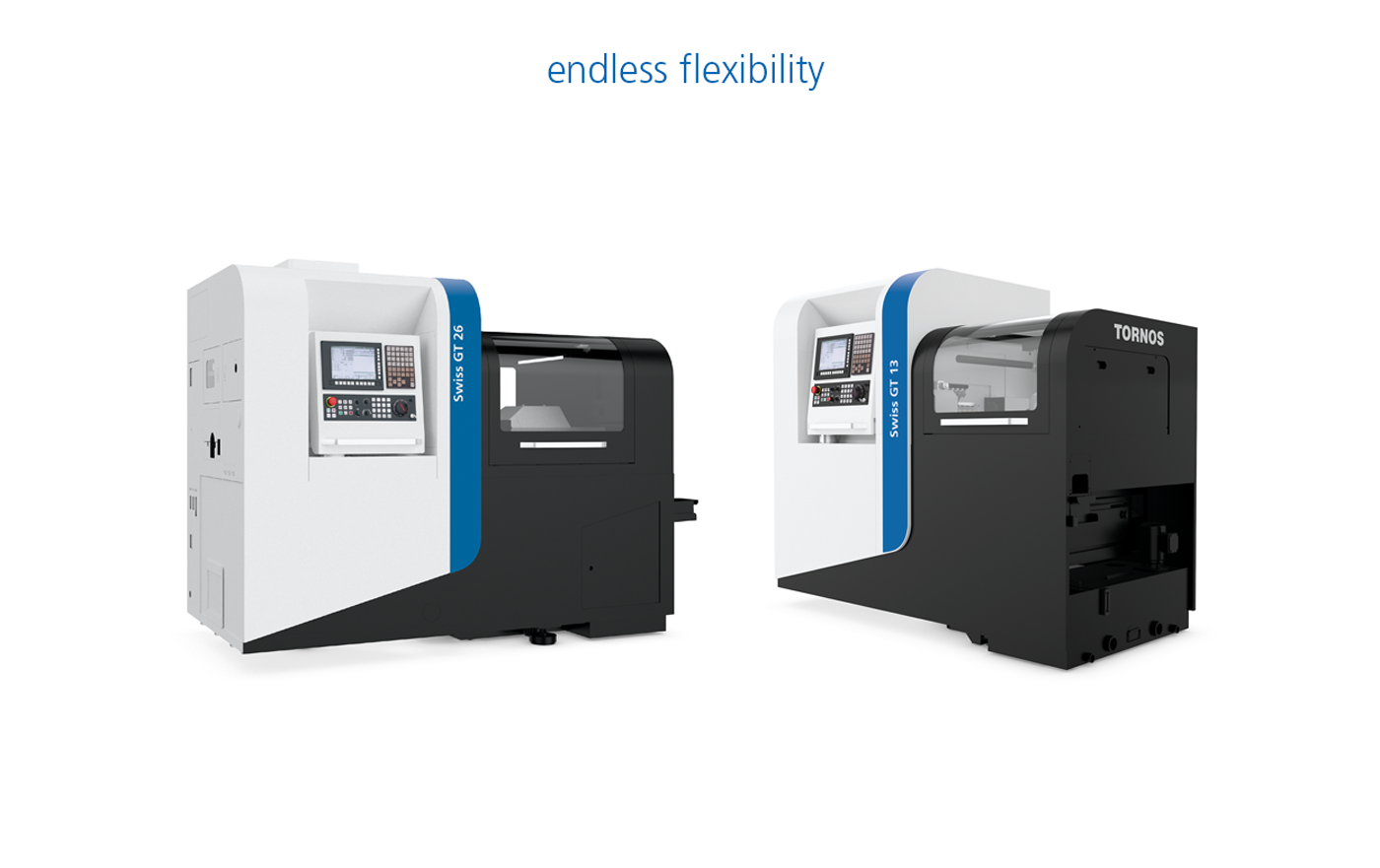

Swiss GT 26 and Swiss GT 13 are comprehensive machining solutions which enable complex parts to be produced at a competitive price.
Operation with or without guide bush
The conversion takes place in less than 15 minutes, on both 13 mm and 26 mm versions
The classics: Turning and milling
Swiss GT's are extremely versatile: they can be equipped with up to 40 tools, including 16 rotating tools and up to 30 tools on the Swiss GT 13, of which 12 are rotating; it features a modular tooling system on the rear platten, which enables it to house several types of device.
High added value operations
The Swiss GT's can machine all workpieces, which means that you can say yes to your customers, whatever their requirements. The Swiss GT 26 is compatible with numerous devices, including a polygon tool, a thread whirling tool and an angled milling device. Contact us for further details.
Proven kinematics
In addition to the machine's modular tool positions in main operations, the counter spindle carriage on the Swiss GT's can be fitted with 2 drill bits for deep boring.
Swiss GT 26
Technical specifications
| Swiss GT 26 | 6 axes | |
|---|---|---|
|
Maximum diameter |
mm |
25.4 |
| Number of linear axes |
axes |
6 |
| Number of C axes |
axes |
2 |
|
Number of independent tool systems |
2 | |
|
Total number of tool positions |
40 | |
|
Position for rotating tools |
14 |
Swiss GT 13
Technical specifications
| Swiss GT 13 | 6 axes | |
|---|---|---|
|
Maximum diameter |
mm |
13 |
| Number of linear axes |
axes |
6 |
| Number of C axes |
axes |
2 |
|
Number of independent tool systems |
2 | |
|
Total number of tool positions |
30 | |
|
Position for rotating tools |
12 |
